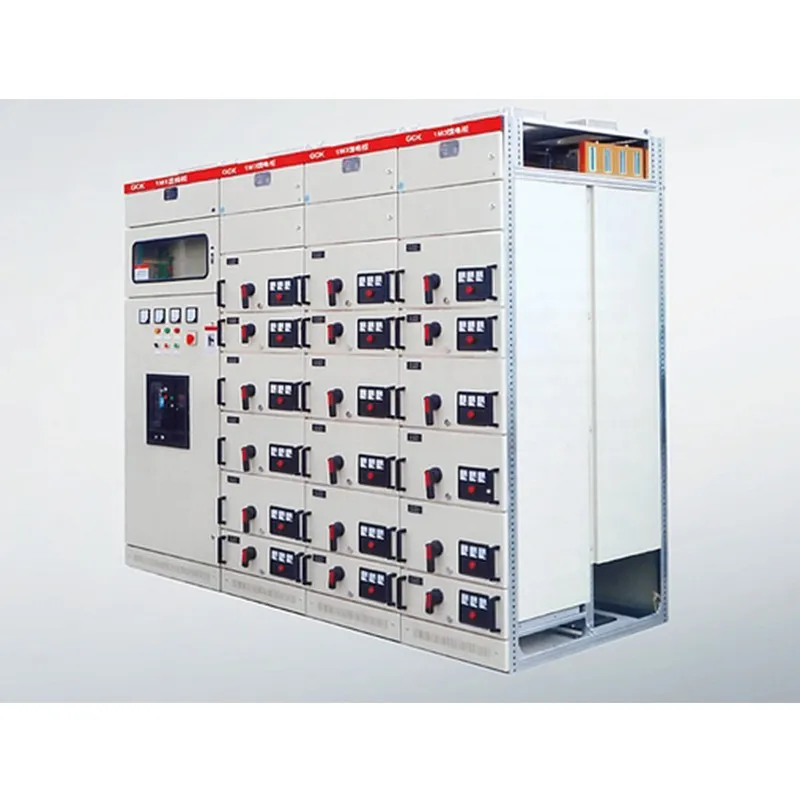

GCK low voltage draw-out switch cabinet

Overview

GCK type low-voltage withdrawable switchgear is designed by our company according to the needs of users. It has the characteristics of advanced structure, beautiful appearance, high electrical performance, high protection level, safety and reliability, and convenient maintenance. It is used in metallurgy, petroleum, chemical, electric power, machinery, textile and other industries low-voltage power supply system project approved power distribution device. It is listed as a recommended energy-saving product for the transformation of the two networks by the country.



Features

◆The basic cabinet frame of GCK is a combined assembly structure. All the cabinet frames are galvanized and sprayed with plastic treatment. They are connected to each other by screws to form a basic cabinet frame, and then the doors, baffles, partitions, drawers, and mounting brackets are used as needed. As well as busbars and electrical components and other parts, assembled into a complete control center cabinet, the cabinet structure has the following characteristics.

◆Cabinet frame The cabinet frame is made of shaped steel, using three-dimensional corner plates for positioning, and bolted connection without welding structure to avoid welding deformation and stress, and improve installation accuracy.

◇The molding size of the parts, the hole size, and the equipment interval are modularized. (Modulus E=20mm, the same below).

◇The internal structural parts are galvanized.

◇The exterior is phosphated: then sprayed with electrostatic epoxy powder.

◇The cabinet frame is divided into three isolated sections of bus bar, functional unit and cable, which can prevent the spread of accidents and facilitate point-of-care maintenance.

◆Functional unit (drawer part)

◇Functional unit: feeder unit, motor unit, public power supply unit.

◇The modulus of drawer layer height is 200 mm. The rated current of the unit loop is 630 A and below.

◇Each MCC cabinet can install up to 9 one-unit drawers or 181/2-unit drawers.

◇The trap door in the compartment automatically opens and closes as the drawer advances and pulls out, so that the vertical bus bar cannot be touched in the compartment.

◇The back of the functional unit has main circuit inlet and outlet plugs, auxiliary circuit secondary plugs and grounding plugs.

◇The grounding plugsures the continuity of the protection circuit when the drawer is at the separation test link position.



Conditions of Use

◆The ambient temperature should not be higher than+40°℃, not lowerthan-5℃, and the average temperature within 24 hours should not be higher than +35℃. When it exceeds, the capacity should be reduced and run according to the actual situation

◆For indoor use, the altitude of the place of use shall not exceed 2000m.

◆The relative humidity of the surrounding air does not exceed 50% when the highest temperature is +40℃, and a larger relative humidity is allowed at a lower temperature, such as 90% at +20°℃. It should be taken into account that it may be accidental due to temperature changes. The effect of condensation.

◆When the device is installed, the inclination to the vertical plane is not more than 5%, and the entire cabinet row is relatively flat.

◆The device should be installed in a place where there is no severe vibration and impact, and where the electrical components are not corroded.

Note: The user can negotiate with our company when the above-mentioned normal use conditions are exceeded
