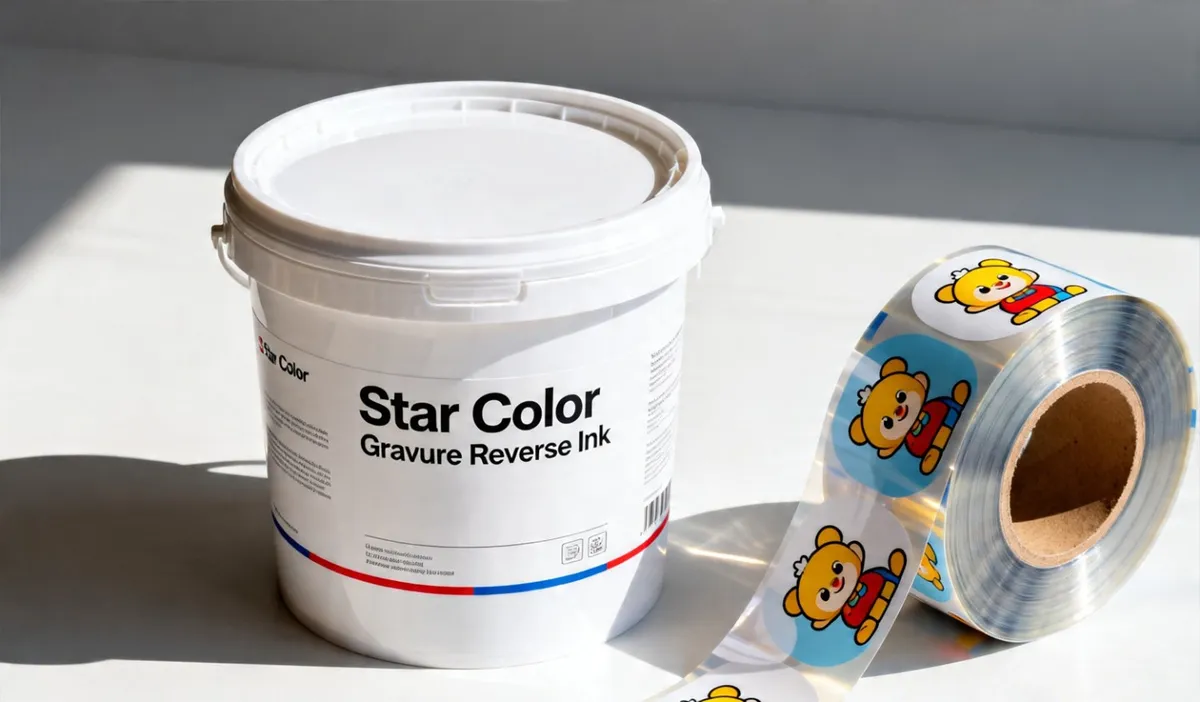

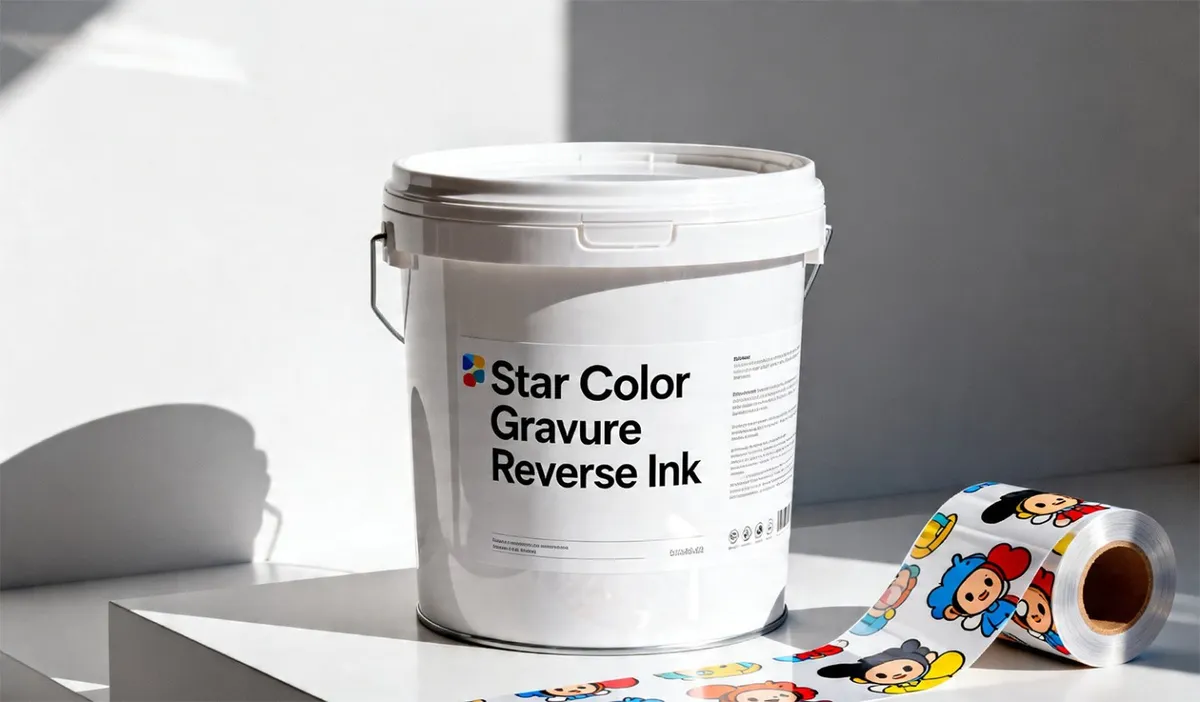

Gravure Reverse Ink | Water-Based Ink | ECO-friendly Ink
Product Features
✅ Excellent Adhesion: Offers good wettability and adhesion to various film materials, preventing ink detachment issues.
✅ High Gloss & Clarity: Delivers vibrant colors and rich gradients, ideal for high-precision printing patterns.
✅ Superior Composite Compatibility: Compatible with dry lamination, water-based adhesive lamination, and other processes, ensuring strong bonding without delamination.
✅ Fast-Drying Formula: Enables high-speed printing, reduces energy consumption, and minimizes sticking.
✅ Eco-Friendly & Low Odor: Complies with environmental regulations, suitable for odor-sensitive packaging applications.
✅ Excellent Doctor Blade Adaptability: Reduces blade lines and ink misting, ensuring stable printing performance.
Applicable Scope
Suitable for printing on the following materials and use as composite inner layer:
✅ BOPP (Biaxially Oriented Polypropylene)
✅ PET (Polyester Film)
✅ PP (Polypropylene Film)
✅ CPP, PE (requires treatment)
Commonly used in:
✅ Flexible food packaging (e.g., snacks, candies, instant foods)
✅ Daily chemical packaging (e.g., laundry detergent, shampoo)
✅ Medical outer packaging
✅ Freezer bags, liquid pouches, and similar applications.
| Item | Specification |
|---|---|
| Type | Water-based Ink |
| Printing Method | Gravure Reverse Printing |
| Color | Customizable (CMYK / Spot Colors) |
| Viscosity (25°C) | 8-10s (Din 4# cup) |
| PH | 7.5-9.0 |
| Solid Content | 30%-40% |
| Drying Method | Water evaporation or hot air drying |
| Printing Speed | 150-200 m/min (recommended) |
| Thinner | Water/ethanol/customized mixed solvent |
| Storage Conditions | Store in a sealed container away from light at 5-35°C |
| Packages | 20kg/drum |
| Shelf Life | 12 months |
Usage Instructions
-
Pre-Press Preparation:
Ensure material surface tension ≥38 dyn/cm to guarantee adhesion. -
Dilution Ratio:
Adjust according to printing speed and seasonal conditions. A 5%-15% thinning agent addition is recommended. -
Viscosity Control:
Maintain viscosity within the optimal range to avoid over-dilution or excessive thickness, which may affect print quality. -
Drying Settings:
Optimize hot air temperature (recommended 50~65°C) to ensure thorough drying and prevent misregistration. -
Storage & Usage:
Stir thoroughly before use. Conduct small-batch test prints for performance verification if left unused for extended periods.
| Company Name | Huizhou ZhongZhiXing Color Technology Co., Ltd. | Country/Region | China |
| Business Type | Manufacturer/Factory | Company Size | 50 |
| Established | February 16, 2016 | ||
| Address | Twelve Tuo Section, Daling Street, Huidong County (Floors 1-5, Building 12, Wanyang Science and Technology City Park) | ||
| Main Products | water-based ink | ||
Huizhou ZhongZhiXing Color Technology Co., Ltd.was established in 2016 as a new rising star in the water-based ink manufacturing industry. It is located in Huicheng District, Huizhou. As the industry's newest water-based ink manufacturer, it offers stable, high-quality water-based inks and water-based varnishes for flexographic printing. It focuses on providing customers with one-stop printing solutions. In particular, it specializes in the development of printing and packaging technology services and standard establishment for sanitary materials.Our factory is located in Huicheng District, Huizhou City, Guangdong Province, China, only 5 kilometers away from the entrance of Huida Expressway. Transportation is very convenient. As an emerging water-based ink manufacturer in the industry, we provide stable and high-quality water-based ink, temperature-changing ink, environmentally friendly ink for flexographic and gravure printing, as well as water-based gloss suitable for flexographic printing. Focusing on providing customers with one-stop printing solutions. Especially specialized in printing and packaging technology services and standard establishment in the field of sanitary materials.Our products can be applied to the printing of food-grade paper cups, paper dishes, ice cream (aluminum foil), cake paper, napkins, medical-grade drug packaging, sanitary napkins, diapers, as well as conventional kraft paper, self-adhesive label paper, paper bags, and corrugated boxes.
We have an outstanding technical research and development team dedicated to developing products suitable for today's market to adapt to the ever-changing market. We assist customers in solving existing problems, establish professional teams, improve production efficiency, and save production time and costs.
An excellent after-sales service team with a thorough understanding of our products can provide accurate and high-quality online and offline services to all customers, as well as on-site problem analysis and handling.
