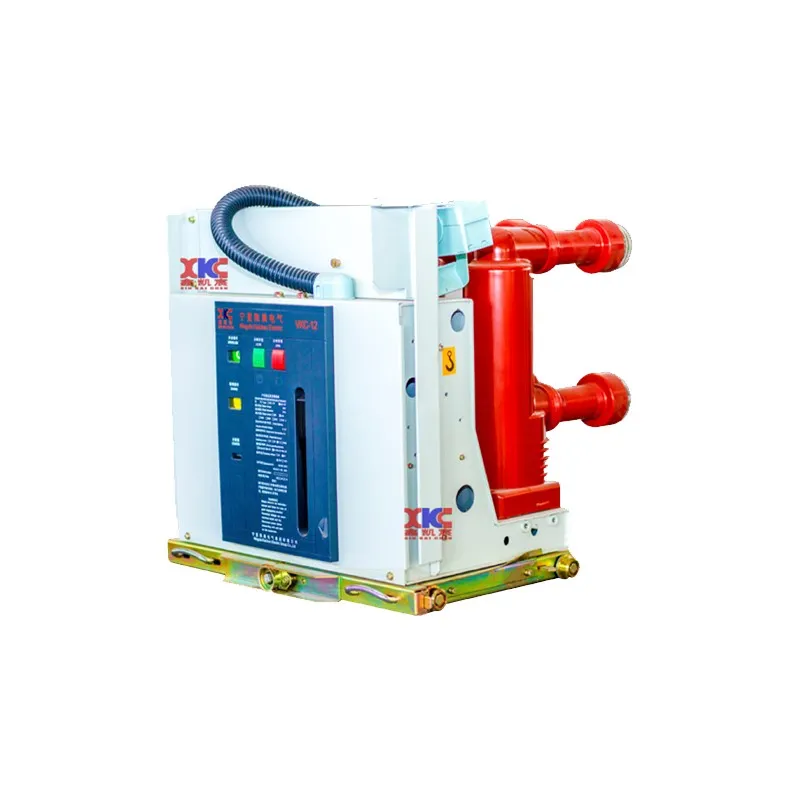

VKC-12 Indoor high voltage series vacuum circuit breaker

OVerview

VKC-12 indoor high voltage series vacuum circuit breaker is suitable for three-phase AC power system with rated voltage of 12KV and frequency of 50Hz. It can be widely used in electric power, water conservancy, communication, industry, new energy, petrochemical, transportation, infrastructure and other industries. The switch operating mechanism adopts an integrated modular mechanism. The vacuum interrupter and the main conductive circuit are directly sealed in the epoxy resin pole by the mature APG process to form a solid-sealed insulation method to protect the vacuum interrupter and the main circuit components from being affected by collision, dust and condensation. It is suitable for places with frequent operation or multiple interruption of short-circuit current, especially for places with harsh environmental conditions.

VKC-12 indoor high voltage series vacuum circuit breakers meet the standards of GB1984 "High Voltage AC Circuit Breaker, GB/T11022"High Voltage Switchgear and Control Equipment Standard Common Technical Requirements", DL/T403"High Voltage Vacuum Circuit Breaker Ordering Technical Conditions"standards Requirements, and meet the relevant requirements of standards such as IEC62271-100.



Features

The VKC-12P high-voltage solid-sealed vacuum circuit breaker is a product independently designed, developed, and manufactured by our company. During the research and development process, the relevant technical standards such as the national "high-voltage AC circuit breaker"and the technical requirements of the state grid are strictly implemented. VKC-12P is solid-sealed In the inspection of various indicators of the circuit breaker, the quality, technical requirements and standards all meet the acceptance requirements, and have passed the inspection of the national authority. The excellent quality of the VKC-12P circuit breaker is derived from our high-end product positioning and selection of domestic excellent supporting manufacturers. The advanced, scientific and strict testing equipment and perfect quality management system are the result of our product development. Reliable guarantee



Conditions of Use

◆Ambient air temperature:-15℃~+40℃;

◆Altitude:2000m and below;

◆Humidity conditions: the daily average value is not more than 95%, the daily average water vapor pressure does not exceed 2.2 kPa; the monthly average value is not more than 90%, and the monthly average water vapor pressure does not exceed 1.8 kPa.

◆Earthquake intensity: no more than 8 degrees;

◆There is no obvious polluted place such as corrosive or flammable gas.

Note: The user can negotiate with our company when the above-mentioned normal use conditions are exceeded.



Technical Parameters
