High-Quality PET Bottles via Injection Blow Molding

How to Achieve High-Quality PET Bottles Using Injection and Blow Molding Techniques

Polyethylene Terephthalate (PET) is a widely used thermoplastic in the packaging industry, prized for its clarity, strength, and recyclability. It is highly compatible with injection and blow molding techniques, essential for manufacturing durable and precise PET bottles.

This article explores the key parameters involved in each process, including equipment selection, temperature control, pressure regulation, and material handling. From optimizing mold temperatures to choosing high-viscosity PET resins, manufacturers must carefully monitor every stage to achieve consistent quality.

In addition, the article highlights the importance of sourcing high-quality materials through platforms like Tdd-global, a leading chemical industry B2B platform. Buyers and producers benefit from access to ISO certified chemicals, REACH compliant suppliers, and secure B2B transactions. With cross-border warehousing and integrated logistics solutions, TDD supports global chemical sourcing and helps streamline the PET bottle production supply chain.

Polyethylene Terephthalate (PET) is one of the most versatile and sustainable thermoplastics used globally for bottle manufacturing. Its thermal behavior—softening with heat and solidifying upon cooling—makes it ideal for injection and blow molding processes. Each step requires strict process control to maintain quality and ensure efficiency.

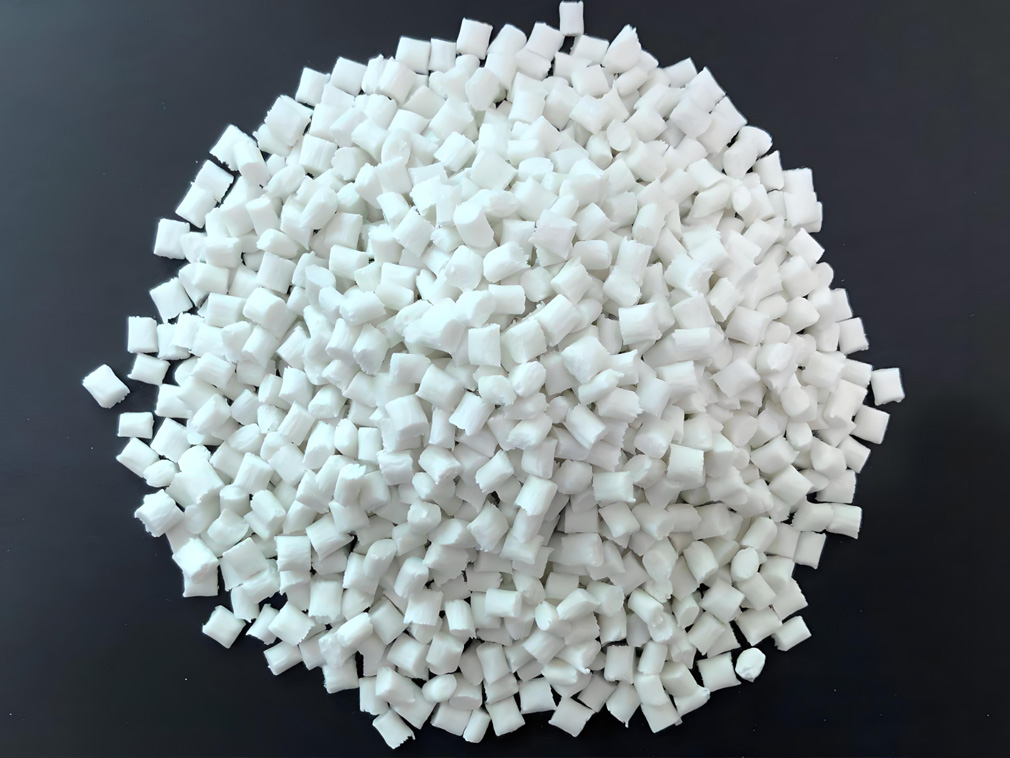

Injection Molding Basics Injection molding begins with melting PET resin pellets at around 250–280°C. The molten resin is injected into a metal mold using a screw-driven system. For better wear resistance and plasticization, a screw with a check ring and a 15–20:1 length-to-diameter ratio is recommended. In cases involving glass fiber-reinforced PET, wear-resistant or lined barrels should be used.

Barrel temperatures should be maintained between 240–280°C. For reinforced PET, this range may increase to 250–290°C. The nozzle should be 10–20°C cooler than the barrel to prevent overheating. Mold temperature significantly affects crystallinity and should range from 100–140°C depending on wall thickness. Injection pressure should be moderate—80 to 140 MPa for standard PET and up to 150 MPa for reinforced types.

Preform Optimization High-quality PET preforms are critical. They must be uniform in shape, impurity-free, and stored correctly. Preforms should be aged for at least 24 hours before reheating. Once reheated, they should be used within 48 hours and not stored for more than six months total.

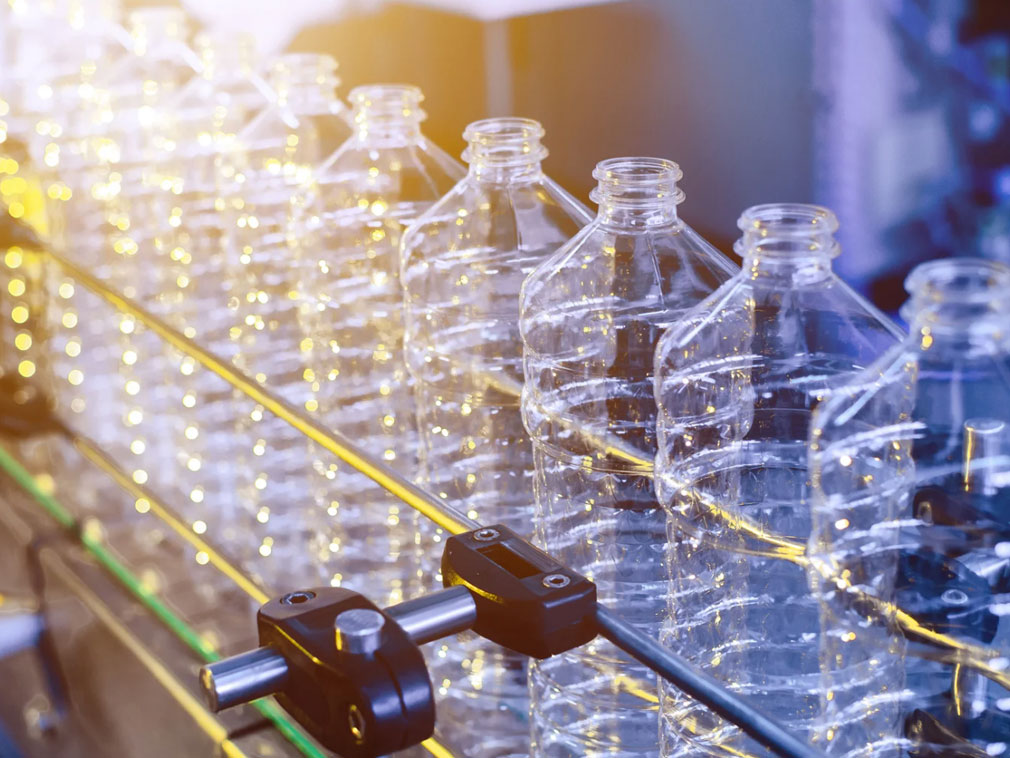

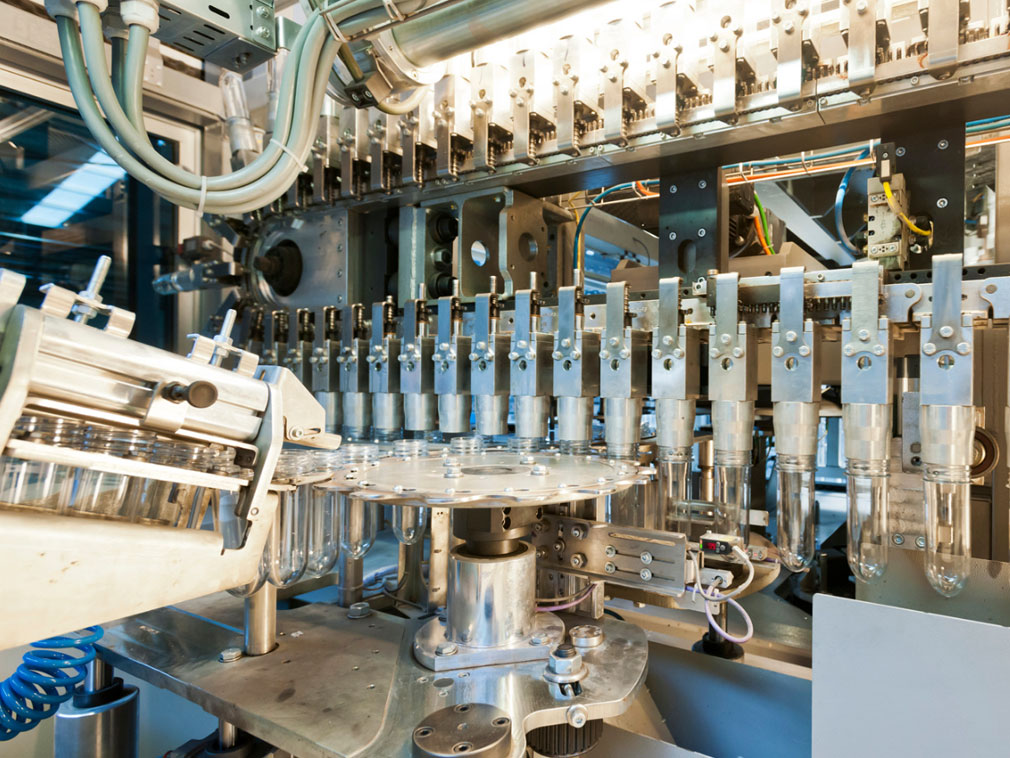

Blow Molding Process Blow molding follows injection molding, using reheated preforms. These are placed into blow molds and inflated with high-pressure air. The preform expands and takes the mold’s shape. Proper heating, airflow, and mold design are key to achieving consistent wall thickness and clarity.

During heating, avoid temperature extremes to prevent bottle defects. Use cooling plates and fans to maintain even temperatures. Pre-blowing is a vital step, shaping the bottle before final inflation. Adjust pre-blow pressure based on bottle size. The mold temperature must be steady, with the bottle base cooler (around 5–8°C for cold-fill bottles) or warmer for hot-fill variants.

Material Selection and Supply Chain Considerations Material quality plays a decisive role in end-product performance. Choose PET resins with intrinsic viscosity between 0.78–0.85 cm³/g for clarity and strength. Avoid substandard rPET or improperly processed resins.

To secure high-quality materials, many manufacturers turn to chemical industry B2B platforms like Tdd-global. As a trusted China Chemical B2B Marketplace, TDD connects global buyers with certified chemical manufacturers and reliable chemical exporters. The platform offers access to ISO certified chemicals, MSDS certified chemicals, and REACH compliant suppliers. It is particularly valuable for sourcing titanium dioxide suppliers, resin exporters paint manufacturers, and bulk chemical suppliers across the international chemical market.

TDD enhances global chemical sourcing through secure B2B transactions, integrated logistics solutions, and cross border warehousing. Its global distribution centers ensure efficient freight forwarding services and end-to-end logistics. For those in the PET bottle production sector, leveraging such a chemical business network is key to maintaining competitive edge and product reliability.
