LDPE Production: Processes and Reactors

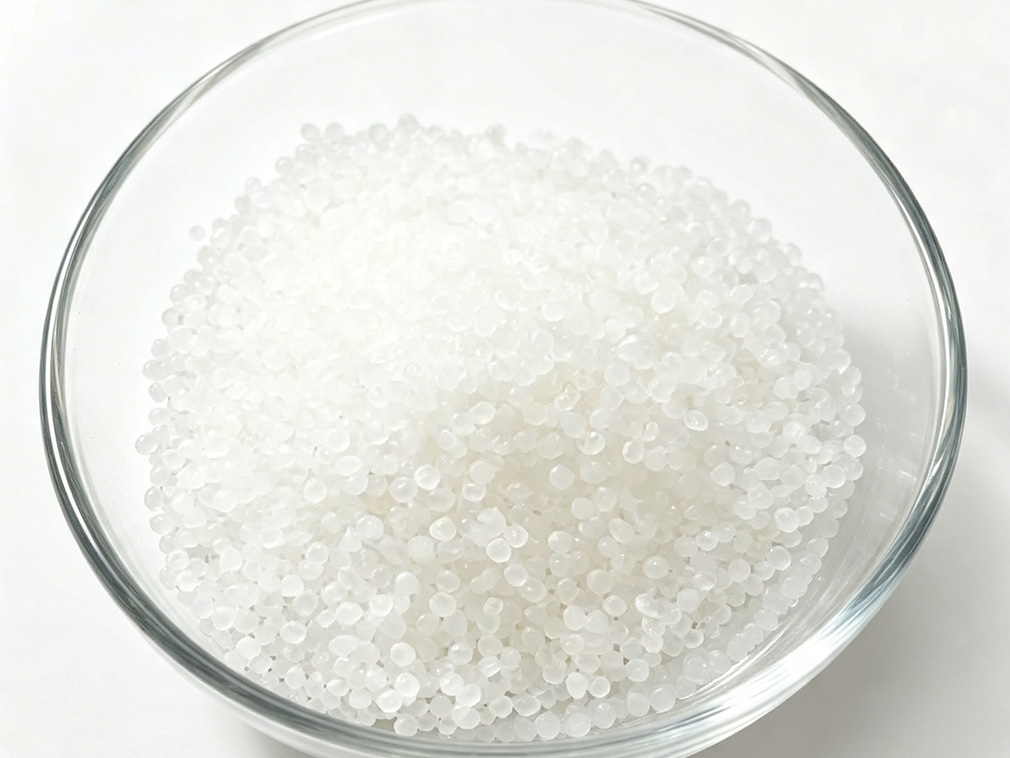

Low-density polyethylene (LDPE) is a plastic that we often see in our lives. It is indispensable for common items such as plastic bags and plastic wrap.

To make LDPE with good performance, the production method is particularly critical. LDPE can be produced by free radical polymerization at 10,000 to 30,000 times atmospheric pressure and high temperatures of 80 to 300 degrees Celsius.

This process requires both precise control of chemical reactions and large-scale production in factories. Currently, two main types of equipment are used to produce LDPE: stirred autoclave reactors and tubular reactors. However, with technological advances, tubular reactors are being used more and more because they can turn more ethylene raw materials into LDPE.

The core principle of free radical polymerization process

The low-density polyethylene (LDPE) we usually use is actually made by free radical polymerization. For example, high temperature and high pressure are like a "magic switch" that can turn the initiator into a particularly active "little pusher". Once these "little pushers" touch the ethylene raw materials, they will pull them hand in hand to form a long chain.

During the reaction, this long chain will continue to "branch" and grow small branches. The more these branches there are, the softer the LDPE produced will be, the better the light transmittance will be, and it will be particularly easy to process and shape.

The specific number of branches that can be grown and whether they are evenly distributed depends on the temperature and pressure during the reaction, as well as the type and amount of initiator. Once these conditions change, the characteristics of the product produced will also change.

Process characteristics of stirred autoclave reactor

The stirred autoclave reactor is a process equipment that was used earlier in LDPE production. It is usually a high-pressure container with a stirring device. Ethylene monomer, initiator and other raw materials are fully mixed in the autoclave and polymerized under high temperature and high pressure.

The role of the stirring device is crucial. It can ensure that the materials in the autoclave are evenly mixed, so that the reaction temperature and pressure distribution tend to be consistent, thereby ensuring the stability of product quality. However, the stirred autoclave reactor also has certain limitations.

Due to the limited space in the autoclave, the residence time of the material is relatively short, and the conversion rate of ethylene is subject to certain restrictions. At the same time, a lot of energy will be consumed during the stirring process, and the sealing requirements of the equipment are extremely high, and the maintenance cost is relatively high.​

Structure and reaction characteristics of tubular reactors​

The tubular reactor is another important LDPE production equipment. It consists of one or more high-pressure pipes with a large aspect ratio, and the raw materials complete the polymerization reaction while flowing in the pipes. Compared with the stirred autoclave reactor, the structure of the tubular reactor is simpler, but its reaction process is equally complex.

Ethylene monomer and initiator are fed into the tubular reactor under high pressure, and the reaction gradually proceeds as the materials flow in the pipe. Due to the long length of the pipe, the residence time of the materials is relatively long, which provides favorable conditions for the full reaction of ethylene, which is also one of the important reasons for the higher ethylene conversion rate of the tubular reactor. ​

Significant advantages of tubular reactors​

The advantages of tubular reactors are not only reflected in the ethylene conversion rate, but also in production efficiency and product quality. In the tubular reactor, the flow of materials presents the characteristics of piston flow. This flow mode makes the concentration, temperature and other parameters of the reaction materials change gradiently along the axial direction of the pipe, which is conducive to the reaction.

At the same time, the tubular reactor can achieve precise control of the reaction process by controlling the temperature and pressure in sections, thereby producing LDPE products with different properties. In addition, the production capacity of tubular reactors is large, which can meet the needs of large-scale industrial production, and the maintenance cost of equipment is relatively low. These factors make tubular reactors have an advantage in the competition with stirred autoclave reactors. ​

Specific value of stirred autoclave reactors​

Of course, stirred autoclave reactors still have certain application value in certain specific cases. For example, for some small-batch and multi-variety LDPE production, stirred autoclave reactors are more flexible and can quickly adjust reaction parameters according to different needs.

But from the overall industrial production point of view, tubular reactors have become the mainstream process for LDPE production with their higher ethylene conversion rate, better production efficiency and lower cost. ​

With the continuous advancement of science and technology, the production process of LDPE is still being optimized. Both stirred autoclave reactors and tubular reactors are moving towards more efficient, energy-saving and environmentally friendly directions.

In the future, by further improving reaction conditions, optimizing equipment structure, and developing new initiators, the production process of LDPE will be more perfect, providing strong support for its wider application in packaging, agriculture, industry and other fields.
