LDPE: Structure, Applications, Innovations

As an important member of the polyethylene family, low-density polyethylene (LDPE) occupies an irreplaceable position in the fields of packaging, agriculture, electronics and daily necessities with its unique molecular structure and comprehensive performance.

Its molecular chain is composed of 4,000 to 40,000 carbon atoms. Although the main chain is a linear structure, it has a large number of short branches and a small number of long branches due to the particularity of the synthesis process.

The formation of these branches originates from the frequent chain transfer reactions in the high-pressure free radical polymerization process. There are about 20-30 short branches per 1,000 carbon atoms, while long branches are generated by chain transfer between molecules.

The presence of branches hinders the close arrangement of molecular chains, resulting in a low crystallinity of LDPE (about 50-60%), which is much lower than the 70-90% of high-density polyethylene (HDPE). Short branches mainly affect the size of the crystalline region, while long branches increase the entanglement of molecular chains, giving the material a certain flexibility and processing performance.

The industrial production of LDPE mainly relies on high-pressure free radical polymerization, and the reaction conditions are high temperature (150-300°C) and high pressure (100-300 MPa). In the high-pressure reactor, ethylene monomers are chain-grown by free radical initiators such as peroxides. Due to the extremely high ethylene concentration under high pressure, chain transfer reactions occur frequently, and finally a highly branched molecular structure is formed.

Although this process consumes a lot of energy, it can accurately control the number and distribution of branches, thereby optimizing the physical properties of the material.

For example, the density of the branches directly affects the crystallinity and mechanical properties of LDPE, and the adjustment of process parameters (such as pressure, temperature and initiator type) can further balance the transparency, flexibility and heat resistance of the material.

In terms of physical properties, the density of LDPE ranges from 0.910-0.940 g/cm³, which is lower than the 0.941-0.965 g/cm³ of HDPE, which makes it softer and easier to process into films or flexible containers. Its melting point is about 105-115°C, and its heat resistance is poor, but its low-temperature toughness is excellent, and it can remain flexible at -50°C.

In terms of mechanical properties, LDPE has a low tensile strength (10-20 MPa), but its elongation at break is as high as 300-600%, and its impact resistance and tear resistance are outstanding, making it particularly suitable for applications that require repeated folding or dynamic loads. In addition, due to its low crystallinity, LDPE has a high transparency and is suitable for making transparent packaging films, while its excellent barrier properties to water vapor make it an ideal choice for food cling film.

However, LDPE has poor barrier properties to oxygen and carbon dioxide, which limits its application in long-term food preservation. In terms of chemical properties, LDPE has good corrosion resistance to acids, alkalis, salt solutions and alcohols, but it is easy to swell in hydrocarbon solvents (such as gasoline) and chlorinated solvents, and it is necessary to avoid contact with such media when using it.

It has excellent high-frequency insulation performance and is often used in the insulation layer of wires and cables. Combined with its moisture resistance characteristics, it occupies an important position in the field of electronics and electrical.

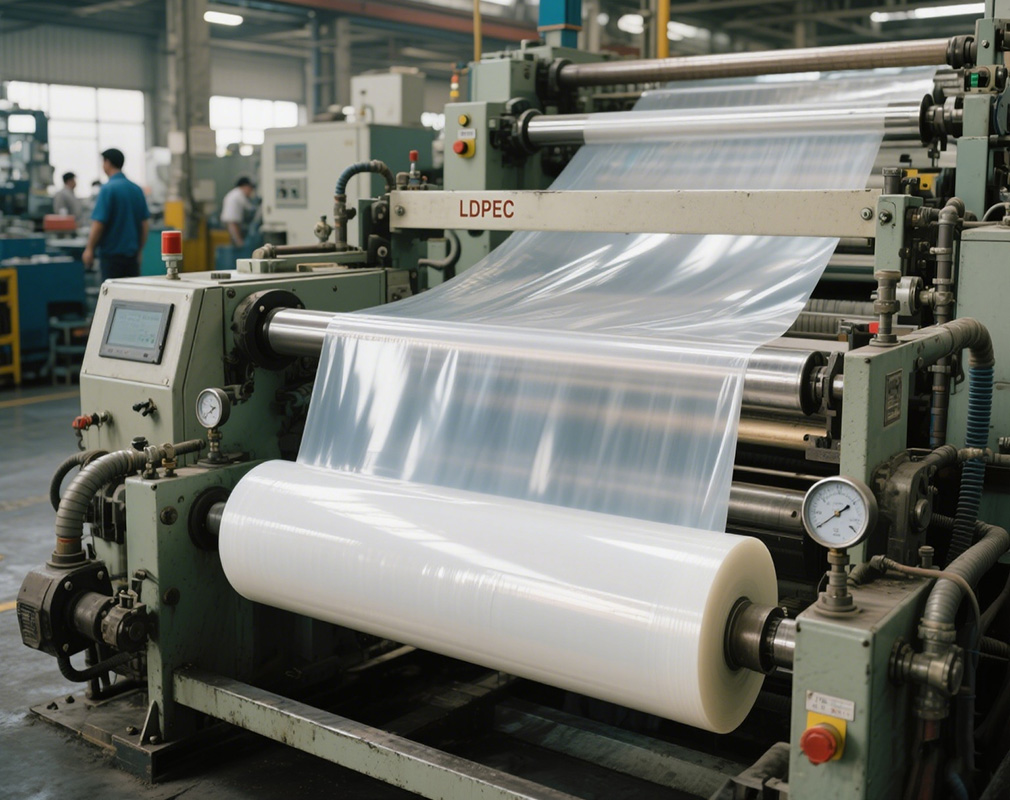

LDPE has various processing technologies, including blow molding, extrusion, injection molding and other processes, with a wide processing temperature range (160-260°C). Blown film is its main processing method, accounting for more than 70% of the total LDPE consumption, and is widely used in shopping bags, agricultural films and other fields.

Extrusion coating technology is used to compound LDPE with cardboard or aluminum foil to make the lining of milk cartons and beverage packaging, which not only maintains the hygiene of the contents but also enhances the mechanical strength of the packaging.

The injection molding process is used to manufacture small products such as bottle caps and toys, taking advantage of its easy molding and low cost. In terms of application areas, LDPE's flexibility and easy heat sealing properties make it dominate the packaging industry, such as food wrap, plastic bags and shrink film.

The agricultural field relies on its light transmittance and weather resistance, and is used to produce greenhouse films and ground films to promote crop growth and reduce water evaporation.

The electrical and electronic industry uses its electrical insulation properties as cable insulation and circuit board protective film, while soft containers, cosmetic tubes and medical catheters commonly found in daily necessities also use LDPE in large quantities to meet the dual needs of material flexibility and safety.

Compared with high-density polyethylene (HDPE), LDPE has significant differences in molecular structure, performance and application.

HDPE molecular chains are mainly linear structures with very few branches, so the crystallinity is as high as 70-90%, the density is higher (0.941-0.965 g/cm³), the mechanical strength is excellent, and the tensile strength can reach 20-30 MPa, but the toughness is low, and the elongation at break is only 100-600%. HDPE has a higher melting point (120-130°C) and better heat resistance, but lower transparency, and is usually used to make rigid containers, pipes and sheets.

The short and long branched chain structures of LDPE make it more advantageous in flexibility, transparency and processing performance, and more suitable for the production of films and flexible packaging materials.

The choice between the two often depends on the needs of specific application scenarios: if high strength and high heat resistance are required, HDPE is a better choice; if flexibility and easy processing are sought, LDPE is more suitable.

Although LDPE is widely used in many fields, its environmental issues cannot be ignored. Due to its high chemical stability, LDPE is difficult to degrade naturally, and traditional landfill and incineration treatments are prone to soil pollution and greenhouse gas emissions.

At present, resource recycling is mainly achieved through mechanical recycling (melting and regranulation) and chemical recycling (pyrolysis into monomers or fuels), but the recycling rate still needs to be improved.

The research and development of bio-based LDPE provides a new direction for sustainable development. For example, LDPE produced from sugarcane ethanol can reduce dependence on fossil resources. In terms of performance optimization, blending modification is a common method.

For example, blending with HDPE or linear low-density polyethylene (LLDPE) can balance strength and flexibility; nanocomposites can significantly improve barrier properties and mechanical properties by adding fillers such as montmorillonite; surface functionalized coating technology can improve the oxygen barrier of LDPE and expand its application in high-end food packaging.

As the earliest industrialized polyethylene variety, LDPE has always dominated the field of flexible packaging. Despite environmental pressure and competition from new materials, LDPE will continue to play its irreplaceable role through process innovation and modification research.
