PVC LED Spacers: Key Insulation for Reliable LED Performance

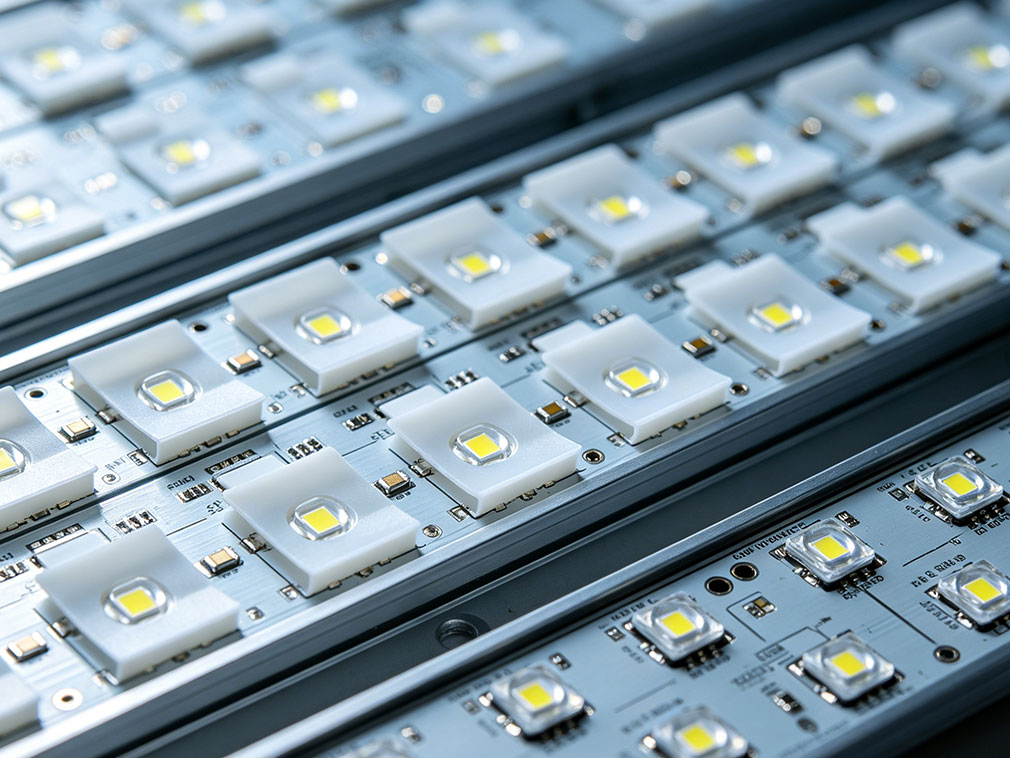

Between LED chips or terminals, there's an inconspicuous yet crucial "small component"—the LED spacer. Typically made of polyvinyl chloride (PVC), its primary function is to form a reliable insulating barrier between LED leads, preventing electrical contact and potential short circuits, thus ensuring normal circuit operation and reducing the risk of damage to the LED or surrounding components.
As a widely used thermoplastic, PVC is an ideal material for LED spacers due to its excellent insulation properties, flexible processing, and affordable cost. This small component plays an indispensable role in LED lighting, display equipment, and other fields.
Why can PVC "block electricity"?

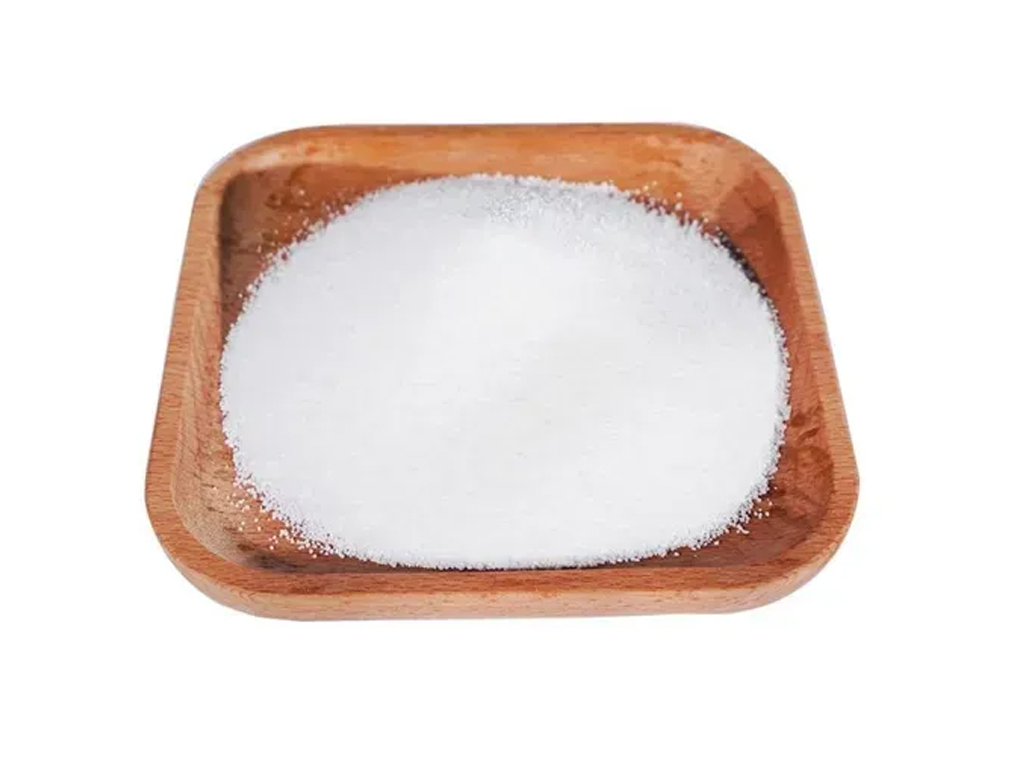

PVC itself possesses excellent electrical insulation properties. Its molecular chain contains polar chlorine atoms, enhancing intermolecular forces, resulting in high resistivity and high breakdown voltage. This effectively blocks current, preventing short circuits between LED leads or between leads and surrounding metal components.
According to industry testing standards, the breakdown strength of PVC can reach over 18kV/mm, and its volume resistivity at 20℃ fully meets the insulation requirements of electronic components. More importantly, modern processes have replaced traditional lead salt stabilizers with calcium-zinc stabilizers, avoiding heavy metal residues. This not only makes the process environmentally friendly but also meets national standards and international certification requirements.
Addressing the Limited Space of LED Pins
The pin spacing in LED devices is typically very small—especially for small LED chips and LED digital tubes, where the spacing can be less than 2 millimeters. In such a compact arrangement, even slight pin misalignment, dust accumulation, or a humid environment can lead to short circuits. PVC spacers can be precisely designed to fit the LED pin specifications, tightly conforming to the pin gaps and preventing short circuits at the source.
Furthermore, LEDs are susceptible to electrostatic discharge (ESD) damage during manufacturing, assembly, and use—ESD can cause the chip's PN junction to melt, increasing leakage current and leading to light decay or even LED failure. The insulating properties of PVC spacers can also help reduce ESD conduction, minimizing damage to the LED chip.
A Guardian in Practical Applications

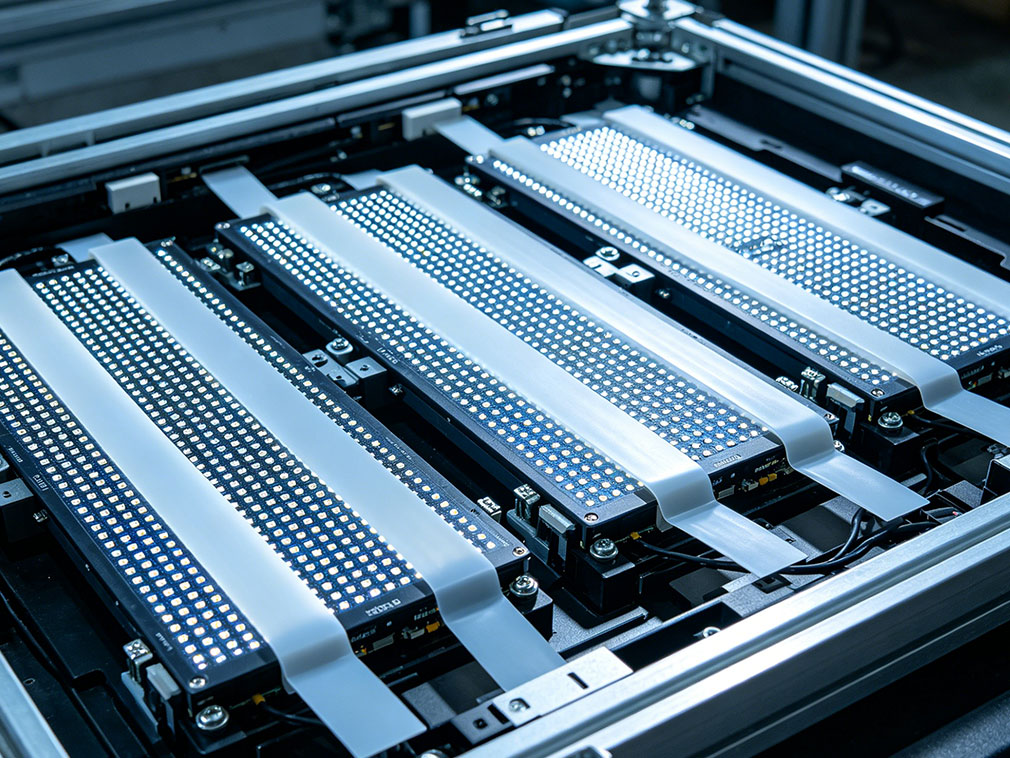

Although small, the LED spacer's insulating protection directly affects the operational stability and lifespan of the equipment. Taking outdoor LED displays as an example, the humid and salty environment of coastal areas accelerates electrode migration, forming dendritic deposits and causing short circuits.
PVC spacers effectively isolate the leads from moisture and salt spray, delaying corrosion and preventing "caterpillar" defects. In indoor LED lighting fixtures, spacers prevent LED leads from contacting the metal casing, ensuring safety and preventing short circuits that could burn out LED chips or damage driver ICs, significantly reducing maintenance costs and failure rates.
Versatile and Reliable
PVC's processing characteristics give LED spacers wide adaptability. Through extrusion and molding processes, products of different thicknesses and shapes can be manufactured to match various LED packaging types and installation scenarios—whether it's through-hole LEDs, surface-mount LEDs, LED modules, or LED digital tubes, corresponding PVC spacer specifications can be found.
At the same time, PVC material has certain mechanical strength and weather resistance, maintaining stable insulation performance and structural integrity within an operating temperature range of -10℃ to 70℃, and is not prone to aging or cracking.
Currently, the production and use of PVC LED spacers comply with relevant industry standards (such as GB/T 22789.2-2023 "Plastic Products - Rigid Polyvinyl Chloride Sheets") to ensure product quality compliance.
With the continuous development of the LED industry, spacers are also being continuously optimized—by adding environmentally friendly plasticizers, flame retardants, and other additives, their insulation performance and environmental protection levels are further improved to meet the needs of high-end LED equipment. The advantages of low cost and high reliability make PVC spacers occupy an important position in the LED industry chain, silently providing a solid guarantee for the safe and stable operation of LED equipment.
